600 Linear 900 x 900 Wet Room Walk In Square Tray Former Kit (End Waste)

Create a sleek showering area with one of our wet room tray former packages, features a tray former, shower waste and installation kit.

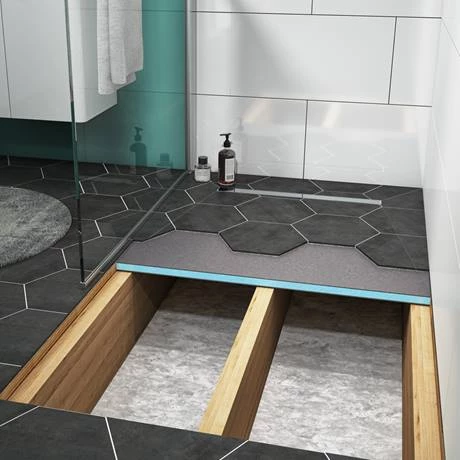

Ideal for creating a wet room in a typical UK timber floor, the supplied tray former gives the correct gradients falling towards the shower waste for effective discharging of waste water.

The tray can be finished with a tile of your choice – either standard tiles cut to the fall of the drain, or decorative mosaic tiles (not included).

The installation kit includes an easy to install waste, specially designed to enable water to flow from the shower tray at a rate of 42 litres per minute. Features a stylish stainless steel finish drain cover plate.

For installations where the shower waste must be installed above the floor the Orion Wetroom Shower Substrate must be used in conjunction and is sold separately.

Tray Former Details

• Shape: Square
• End waste position
• Dimensions: 900 x 900 x 30mm
• Linear 600mm end drain
• Can be used on timber floors
• Waterproof coated
• Ready for tiling
• Can be tiled with any size tiles
• Suitable for level access installation
• Can be trimmed down (max. 100mm)
• Suitable for domestic and commercial use
• Easy to install

Linear Shower Waste + Wetroom Installation Kit Details

• Required for use with all Orion tray formers and substrates
• Complete installation kit
• Linear Drain Cover Plate: 597x40mm
• High flow waste trap 42 l/min
• Stainless Steel cover plate
• Easy to install

15 Year Guarantee

Images are for illustration purposes only

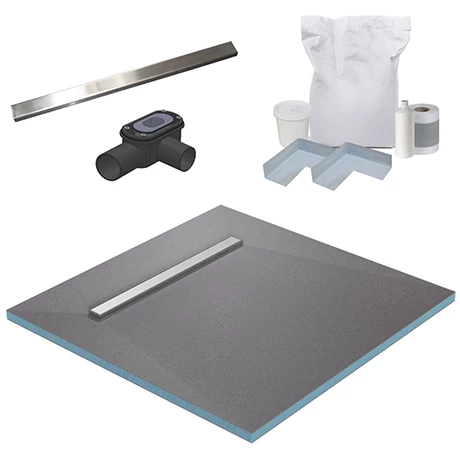

Kit comprises of:

1 x Linear Wetroom Square Shower Tray Former (600mm End Drain – 900 x 900 x 30mm)

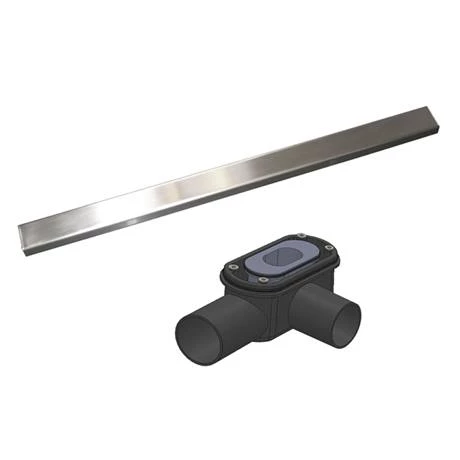

1 x 600mm Linear Wetroom Shower Waste with Stainless Steel Cover Plate
1 x 5kg Fixing Adhesive
1 x 5m Waterproofing Tape
2 x Internal Corners
1 x 250ml Wood Floor Primer
1 x 500ml Tanking Membrane
