1600 x 900 Wet Room – Chrome (1000mm Screen, Tray Former, 600mm Linear Waste with Tileable Cover Plate + Installation Kit)

Create a sleek showering area with one of our wet room packages, features a 8mm-thick glass screen, square support arm, tray former, 600mm linear shower waste with tileable cover and installation kit.

Ideal for creating a wet room in a typical UK timber floor, the supplied tray former gives the correct gradients falling towards the shower waste for effective discharging of waste water.

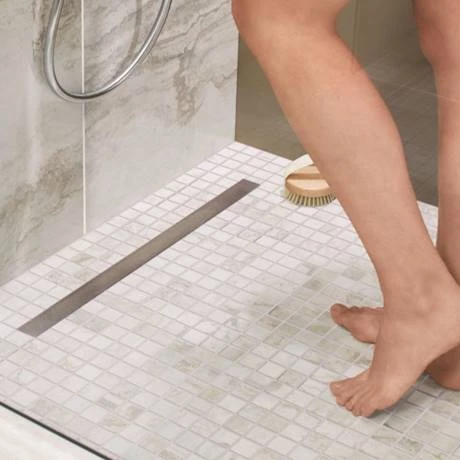

The tray can be finished with a tile of your choice – either standard tiles cut to the fall of the drain, or decorative mosaic tiles (not included).

The installation kit includes an easy to install waste to be used in conjunction with all Linear shower tray formers. Specially designed to enable water to flow from the shower tray at a rate of 42 litres per minute. Features a tileable drain cover plate.

For installations where the shower waste must be installed above the floor the Orion Wetroom Shower Substrate must be used in conjunction and is sold separately.

Glass Screen Details

Height: 1850mm
Width: 1000mm
Adjustment: 975-993mm
Polished Chrome Profile
8mm Toughened Safety Glass – Stronger and safer for your peace of mind
Comes with a Square Stainless Steel Support Arm
Lifetime Guarantee

Tray Former Details

Dimensions: 1600 x 900mm
Thickness: 30mm
End waste position
Linear 600mm end drain
Can be used on timber floors
Waterproof coated
Ready for tiling
Can be tiled with any size tiles
Suitable for level access installation
Can be trimmed down (max. 100mm)
Suitable for domestic and commercial use
Easy to install
15 Year guarantee

Shower Waste + Wetroom Installation Kit Details

600mm Linear Wetroom Shower Waste with Tileable Cover Plate
Linear Drain Cover Plate: 597x40mm
Tileable cover plate
High flow waste trap 42 l/min
Easy to install
For use with Orion Linear trays only
Includes trap kit
Supplied with Complete installation kit
Required for use with all Orion tray formers and substrates
15 Year Guarantee

Images are for illustration purposes only

All measurements are approximate

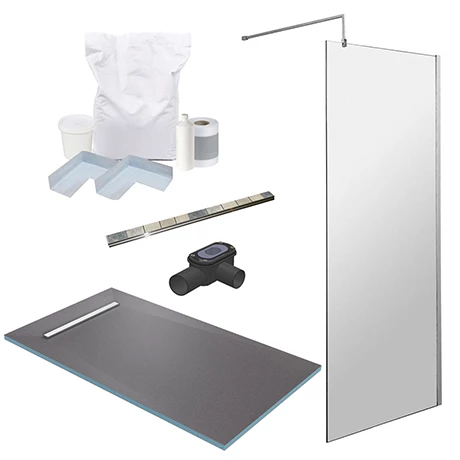

Package comprises of:

1 x H1850 x W1000mm Wetroom Screen (Inc. Chrome Profile + Support Arm)
1 x Linear Wetroom Rectangular Shower Tray Former (600mm End Waste – 1600 x 900 x 30mm)
1 x 600mm Linear Wetroom Shower Waste with Tileable Cover Plate
1 x 5kg Fixing Adhesive
1 x 5m Waterproofing Tape
2 x Internal Corners
1 x 250ml Wood Floor Primer
1 x 500ml Tanking Membrane

Download Instructions
