1600 x 900 Wet Room Enclosure Pack – Chrome

Original price was: $599.95.Current price is: $95.99.

The home of quality products.

Product guarantee 100% satisfaction

Superior Quality Goods

The best quality products, always.

1600 x 900 Wet Room Enclosure Pack – Chrome (1000mm Screen, 900mm Side Panel, Tray Former, Waste + Installation Kit)

Create a sleek showering area with one of our wet room packages, features 8mm-thick glass screens, square support arms, tray former, shower waste and installation kit.

Ideal for creating a wet room in a typical UK timber floor, the supplied tray former gives the correct gradients falling towards the shower waste for effective discharging of waste water.

The tray can be finished with a tile of your choice – either standard tiles cut to the fall of the drain, or decorative mosaic tiles (not included).

The installation kit includes a screw lock high flow waste designed to enable water to flow from the shower tray at a rate of 40 litres per minute. Features a stylish chrome finish shower grate.

For installations where the shower waste must be installed above the floor the Orion Wetroom Shower Substrate must be used in conjunction and is sold separately.

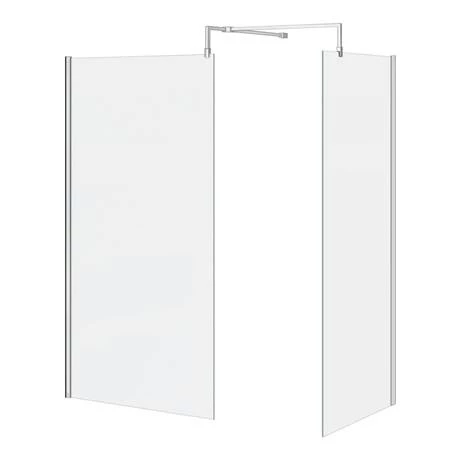

Glass Screen Details

Height: 1850mm
Main Screen Width: 1000mm
Main Screen Adjustment: 975-993mm
Side Panel Width: 900mm
Side Panel Adjustment: 875-893mm
Polished Chrome Profiles
Frameless Design
8mm Toughened Safety Glass – Stronger and safer for your peace of mind
Comes with Square Stainless Steel Support Arms and T-Piece socket set
Lifetime Guarantee

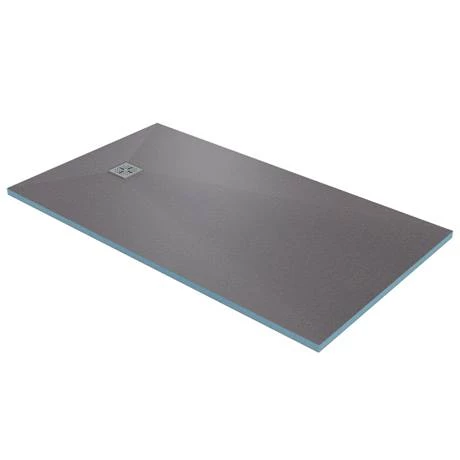

Tray Former Details

End waste position
Dimensions: 1600 x 900 x 30mm
Can be used on timber floors
Waterproof coated
Ready for tiling
Can be tiled with any size tiles
Suitable for level access installation
Factory sealed drain
Can be trimmed down (max. 100mm)
Suitable for domestic and commercial use
Made in the UK
15 Year Guarantee

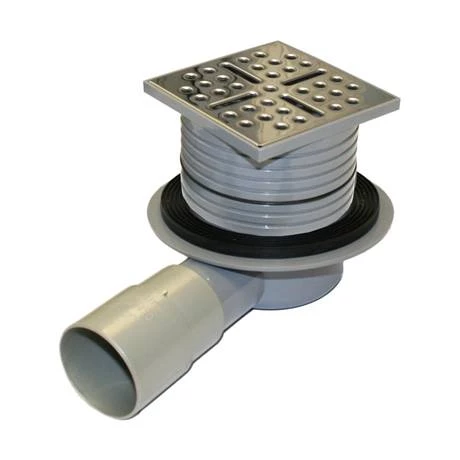

Shower Waste + Wetroom Installation Kit Details

Required for use with all Orion tray formers and substrates
Complete installation kit
Includes high flow waste
Chrome finish grate
Easy to install
Screw lock waste system
Made in the UK
Waste for use with trays only
15 Year Guarantee

Images are for illustration purposes only

All measurements are approximate

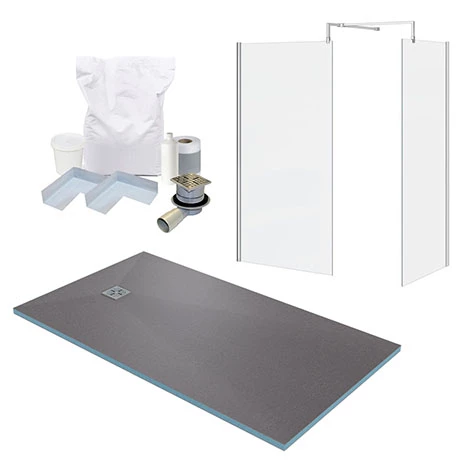

Package comprises of:

1 x H1850 x W1000mm Wetroom Screen (Inc. Chrome Profile + Support Arm)
1 x H1850 x W900mm Wetroom Screen (Inc. Chrome Profile + Support Arm)
1 x Wetroom Rectangular Shower Tray Former (End Waste – 1600 x 900 x 30mm)
1 x High Flow Shower Waste
1 x 5kg Fixing Adhesive
1 x 5m Waterproofing Tape
2 x Internal Corners
1 x 250ml Wood Floor Primer
1 x 500ml Tanking Membrane
