1000 x 1000 Wet Room Walk In Square Tray Former Kit (Centre Waste)

Create a sleek showering area with one of our wet room tray former packages, features a tray former, shower waste and installation kit.

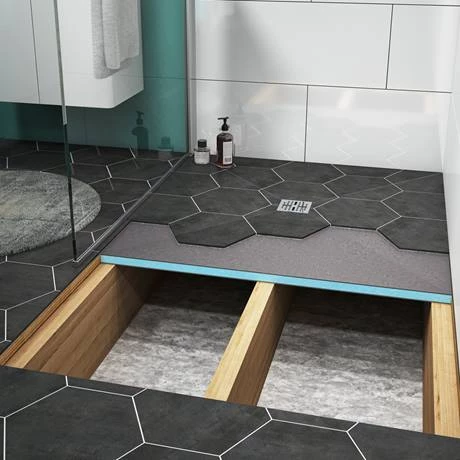

Ideal for creating a wet room in a typical UK timber floor, the supplied tray former gives the correct gradients falling towards the shower waste for effective discharging of waste water.

The tray can be finished with a tile of your choice – either standard tiles cut to the fall of the drain, or decorative mosaic tiles (not included).

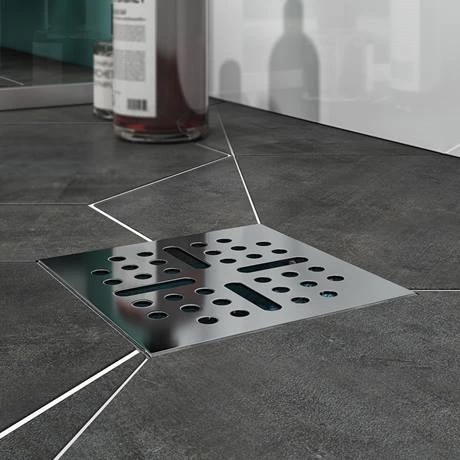

The installation kit includes a screw lock high flow waste designed to enable water to flow from the shower tray at a rate of 40 litres per minute. Features a stylish chrome finish shower grate.

For installations where the shower waste must be installed above the floor the Orion Wetroom Shower Substrate must be used in conjunction and is sold separately.

Tray Former Details

• Shape: Square
• Centre waste position
• Dimensions: 1000 x 1000 x 30mm
• Can be used on timber floors
• Waterproof coated
• Ready for tiling
• Can be tiled with any size tiles
• Suitable for level access installation
• Factory sealed drain
• Can be trimmed down (max. 100mm)
• Suitable for domestic and commercial use

Shower Waste + Wetroom Installation Kit Details

• Required for use with all Orion tray formers and substrates
• Complete installation kit
• Includes high flow waste
• Chrome finish grate
• Easy to install
• Screw lock waste system

Made in the UK

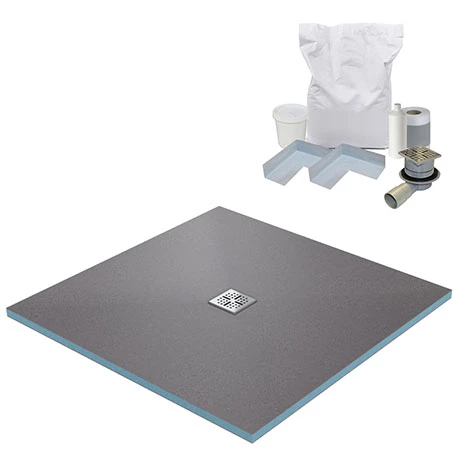

Kit comprises of:

1 x 1000 x 1000 Wet Room Square Tray Former (Centre Waste)

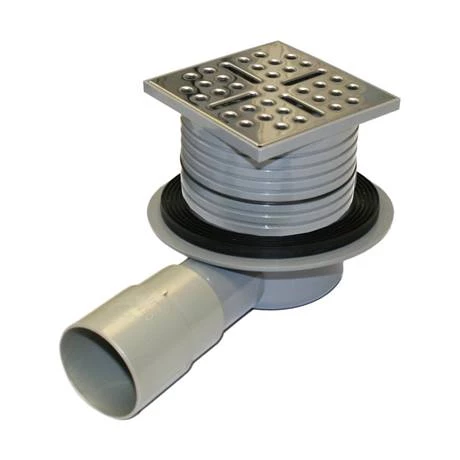

1 x High Flow Shower Waste
1 x 5kg Fixing Adhesive
1 x 5m Waterproofing Tape
2 x Internal Corners
1 x 250ml Wood Floor Primer
1 x 500ml Tanking Membrane
